What exactly is the “precision machining”? This term refers to an accurate subtractive manufacturing method that creates parts with tolerances greater than ±0.025 mm/±0.001”. So, the precision CNC turning is the process of creating cylindrical items with this precision. Machines like CNC lathes, turning centers, and Swiss machines are used for precision turning.
In many applications like medical implants, aircraft parts, automotive parts, and electronic elements, precision is a mandatory requirement for performance and safety.
Let’s discuss the process, benefits, and applications of precision turning in detail:

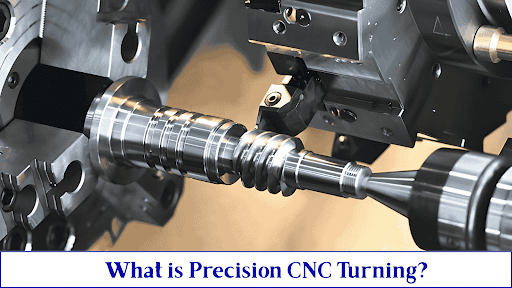

What is Precision CNC Turning?
The precision CNC turning is a machining process that makes cylindrical and complex geometries with tight tolerances. A precision CNC lathe is used for this, which guides the tool according to the CNC program and removes the material from the rotating workbar.
Lathe machines with highly stable spindles are used in CNC precision manufacturing. Consequently, the setup and tool path are also optimized for minimal vibration and maximum rigidity. So, you achieve better accuracy and consistency.
Furthermore, the precision also depends on the machining variables like spindle speed, cutting depth, feed rate, cooling system, and tool wear. Controlling these variables is important, no matter which turning operations you want to perform.
Steps of High Precision CNC Turning
Like any other cnc machining process, precision turning starts with the creation of 3D models in CAD software. Then, G & M codes are generated for the design using CAM tools. The main distinction is following the precise tool & manufacturing approach. Higher axes CNC lathes with rigid spindles are used, and machining parameters are optimized for maximum accuracy.
Let’s look at the steps of the precision turning process:
Planning and Drawing
First, create a detailed design with clear GD& T callouts, features, finish, and other labeling. At this phase, you must define your requirements and consider the manufacturability.
CAM Programming
Generate the CNC program and tool path for material removal, from roughing to finishing passes. Then, select the correct tool and set the machining variables.
Machine Setup
In this stage, you must optimize the toolpaths and cutting parameters for high efficiency and dimensional accuracy. Additionally, ensure a proper coolant system for heat dissociation and chip evacuation.
Mount the tool into the tool post and work into the spindle (or whatever mechanism the machine has). It is important to calibrate the alignment and stability of the setup.

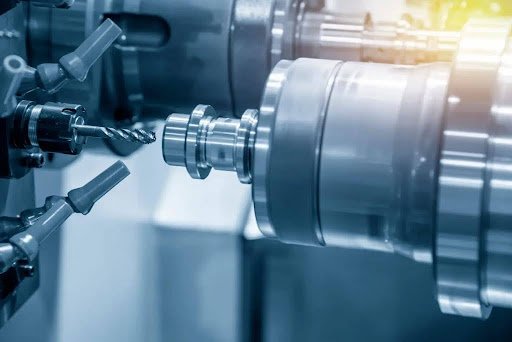

Machining Process
The machining starts with roughing to remove bulk material, then controlled removal for shaping, and finishing passes. For a complex shape, you might also need to change the tools and alignments.
You can use in-cycle inspection and gauging to ensure the precision. If any deviation occurs, you must react quickly and correct the process.
Post-Processing & Quality Control
If required, apply finishing processes to turned items. Then, use CMM and other calibrating equipment for verification of precision and quality.
Benefits of Precision CNC Machining Operations
Not only for fittings and assembly, CNC precision machining does better material utilization and reduces the number of defective items across batches. It is also about stable machining practice, the use of the best tools, and strict quality control.
- The CNC system and precision machining considerations provide very small tolerances.
- Once set up and the CNC program is finalized, they produce identical parts in large runs.
- Multi-axis machining and automation significantly reduce the cycle time and improve the production speed. So, your CNC precision machining company can offer shorter lead times.
- You can perform precision custom machining to make complex components tailored to specific requirements.
- Precision CNC lathes can run 24/7 with minimal human work, supporting automation and boosting efficiency.
Applications of Precision CNC Turning
Precision CNC machining techniques like turning are essential in precision-sensitive applications, where dimensional accuracy and repeatability of parts directly affect assembly, functionality, efficiency, and durability.

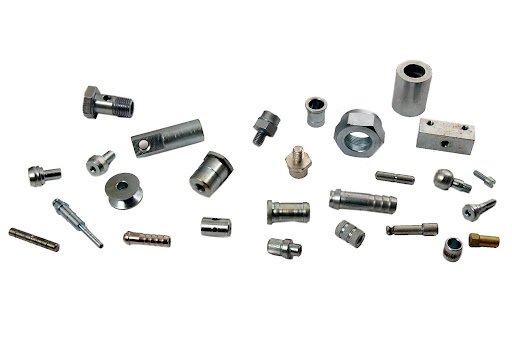

The table below outlines the applications with real-world examples of cnc precision machining parts
| Industry | Why precision turning? | Examples |
| Medical | micro-diameters, ±0.0001″ tolerances for safety, and biocompatible metals | Bone screws, implant stems, catheter shafts |
| Aerospace | high-strength-to-weight alloys, tight concentricity for flight systems | Valve bodies, actuator shafts, hydraulic fittings |
| Automotive | Repeatability, lightweight parts, precision | Injector nozzles, camshafts, bushings |
| Electronics | micro-features, precise contact geometry for reliable connections | Connector pins, sensor housings, RF components |
| Jewelry | Small features and fine surface finish for fitting and aesthetic | Pinions, crowns, bezels |
| Energy | Hard materials, pressure-rated fittings | Valve seats, threaded couplings, and a pump |
Precision Turning Vs Other Precision Machining Methods
Besides CNC turning, there are many other types of precision machining methods. This includes Precision CNC milling, CNC plasma cutting, EDM, spot drilling, laser cutting, etc. Each of these methods has distinct capabilities and is suitable for different application purposes.
In milling, multi-axis CNC mills are used, which are capable of more versatile geometries. Plasma cutting involves a constricted, high-velocity jet of ionized gas called plasma that melts and blows away material.
Spot drill process makes precise holes using a right spot drilling machine. It is great for high positional accuracy. Next, laser cutting uses a focused laser beam to melt the material and shape it.
Conclusion
Precision CNC components made with turning are used across the industries, especially where tight tolerances are required for fitting, assembly, performance, and safety. However, it is important to choose the right type of machine, cutting tool, and material. Consequently, you must ensure a stable setup and minimal vibration.
Furthermore, consider the expertise and capabilities of a CNC precision machining company if you are outsourcing the CNC turning services for your project.
FAQ
What is CNC machining?
It is computer-controlled subtractive manufacturing that uses G and M codes to dictate the tool movement and workpiece shaping process.
What is precision machining?
Any CNC machining that can produce parts with a tolerance tighter than ±0.025 mm is called precision machining.
What are the types of CNC precision machines?
The types of CNC precision machines are CNC mills, lathes, Swiss machines, routers, EDM, and Grinders.
What is CNC precision machining used for?
Precision CNC machining is used to make high-accuracy components in critical applications like automotive engines, aircraft parts, medical implants, electronics fittings, robotics, etc.
What is the difference between CNC machining and precision machining?
CNC machining is an automated material removal mechanism using a computer program, whereas precision machining is a specialized type to make parts with high accuracy.
